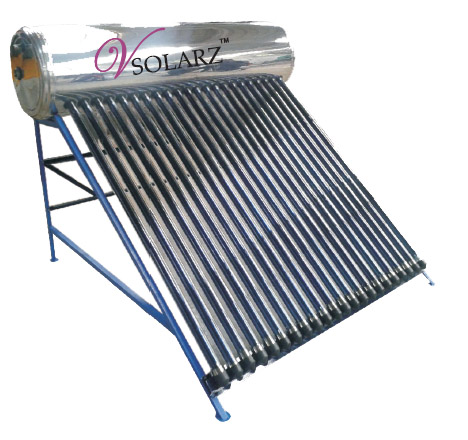

Solar Evaculated tube Collector Type system
Model |
Three Target Vaccum Tube |
Tube structure |
All - Glass double deck co-axial structure |
Glass Material |
Borosilicate 3.3 glass |
Outer Tube Diameter & Thickness |
58 ± 0.7mm, thickness 1.6 ± 0.15mm |
Inner Tube Diameter & Thickness |
47 ± 0.7mm, thickness 1.6 ± 0.15mm |
Tube Length |
1800mm & 2100mm |
Absorptive Coating
|
Coating material Cu/SS-ALN/ALN |
Vaccum Degree |
<= 5.0 x 10-3 Pa |
Transmittance of Glass Tube |
>=0.89 (AM 1.5) |
Stagnation Parameter |
200~ 240 m2˚C/Kw |
Average heat Loss |
<= 0.65w (m2*˚ C |
Hail Resistance |
25mm |

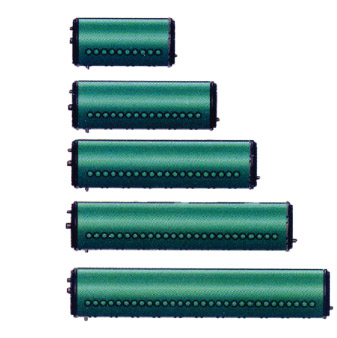

Domestic Integrated System
Capacity |
Inner Tank |
Outer Tank |
Puf |
Evacuated |
Structure |
||
CRCA |
SS 304 |
Pre-Coated |
SS 430 |
||||
100 Ltrs |
1.2mm |
0.8mm |
0.4mm |
0.4mm |
38 Kg/m³ |
10 Nos |
CRCA Powder Coated |
150 Ltrs |
1.2mm |
0.8mm |
0.4mm |
0.4mm |
38 Kg/m³ |
15 Nos |
CRCA Powder Coated |
200 Ltrs |
1.2mm |
0.8mm |
0.4mm |
0.4mm |
38 Kg/m³ |
20 Nos |
CRCA Powder Coated |
250 Ltrs |
1.2mm |
0.8mm |
0.4mm |
0.4mm |
38 Kg/m³ |
25 Nos |
CRCA Powder Coated |
300 Ltrs |
1.2mm |
0.8mm |
0.4mm |
0.4mm |
38 Kg/m³ |
30 Nos |
CRCA Powder Coated |
All CRCA Tanks are coated with FUSION BONDED EPOXY which is suitable for Hard Water Application

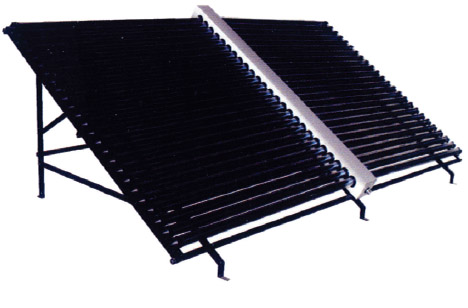

Commercial Split System
Capacity |
Inner Tank |
Outer Tank |
Puf |
Evacuated |
Structure |
||
CRCA |
SS 304 |
Pre-Coated |
SS 430 |
||||
200 Ltrs |
1.6mm |
1.0mm |
0.4mm |
0.4mm |
38 Kg/m³ |
1 Nos |
CRCA Powder Coated |
1000 Ltrs |
2.0mm |
1.2mm |
0.4mm |
0.4mm |
38 Kg/m³ |
2 Nos |
CRCA Powder Coated |
1500 Ltrs |
2.0mm |
1.2mm |
0.4mm |
0.4mm |
38 Kg/m³ |
3 Nos |
CRCA Powder Coated |
2000 Ltrs |
2.0mm |
1.2mm |
0.4mm |
0.4mm |
38 Kg/m³ |
4 Nos |
CRCA Powder Coated |
We also do Pressuried System for ETC type Systems with Heat Exchangers. 1 no. Manifold = 50 nos of tubes (58 x 1800).

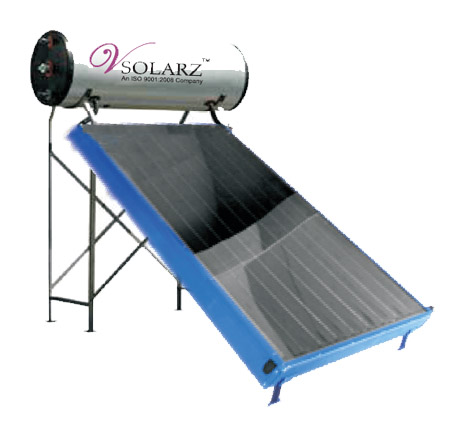

Solar Flat Plate Collector Type system
Item Description Specification |
|
Absorber Size |
2000 x 1000mm |
Absorber Material |
Copper |
Absorber Coating |
Selective Black Chrome |
Header and Riser Size |
25.4Ø / 12.7Ø |
No of Fins |
9 |
Bonding Riser Tube to Fins |
Laser Welding/Ultrasonic Welding |
Flange/Grommets/Gaskets |
Brass/EPDM/Aluminum |
Collector Size |
2030 x 1030 mm |
Collector Frame |
Alu. pure polyester Powder Coating |
Collector Back Sheet |
Aluminum 0.46 |
Collector Glazing |
4mm Toughened Low Iron |
Collector Glass Fixing |
Stainless Steel |
Glass Beeding and sealing |
EPDM |
Collector Insulation |
Glass wool 24Kg/m3 |
Collector Covering |
HDPE Cover |

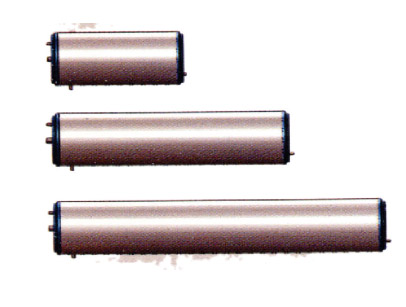

Domestic Integrated System
Capacity |
Inner Tank (Normal) |
Inner Tank (Pr) |
Puf |
Outer Tank |
Collectors |
Structure |
|||
CRCA |
SS 304 |
CRCA |
SS 304 |
Pre-Coated |
SS 430 |
||||
100 Ltrs |
1.2mm |
0.8mm |
2.0mm |
1.6mm |
38 Kg/m³ |
0.4mm |
0.4mm |
01 No |
CRCA Powder Coated |
200 Ltrs |
1.2mm |
0.8mm |
2.0mm |
1.6mm |
38 Kg/m³ |
0.4mm |
0.4mm |
02 Nos |
CRCA Powder Coated |
300 Ltrs |
1.2mm |
0.8mm |
2.0mm |
1.6mm |
38 Kg/m³ |
0.4mm |
0.4mm |
03 Nos |
CRCA Powder Coated |
All CRCA Tanks are coated with which is suitable for Hard Water Application. FUSION BONDED EPOXY

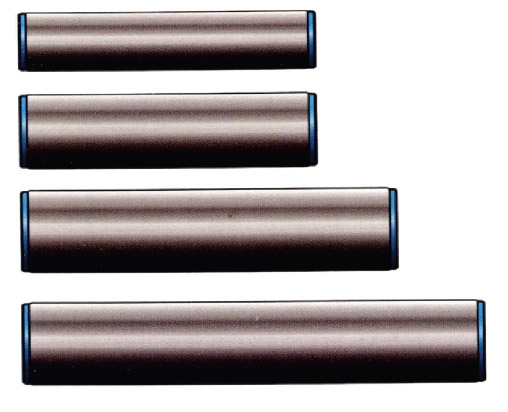

Commercial Split System
Capacity |
Inner Tank (Normal) |
Inner Tank (Pr) |
Puf |
Outer Tank |
Collectors |
Structure |
|||
CRCA |
SS 304 |
CRCA |
SS 304 |
Pre-Coated |
SS 430 |
||||
500 Ltrs |
1.6mm |
1.0mm |
2.5mm |
2.0mm |
38 Kg/m³ |
0.4mm |
0.4mm |
4 Nos |
CRCA Powder Coated |
1000 Ltrs |
2.0mm |
1.2mm |
3.0mm |
2.0mm |
38 Kg/m³ |
0.4mm |
0.4mm |
8 Nos |
CRCA Powder Coated |
1500 Ltrs |
2.0mm |
1.2mm |
3.0mm |
2.0mm |
38 Kg/m³ |
0.4mm |
0.4mm |
12 Nos |
CRCA Powder Coated |
2000 Ltrs |
2.0mm |
1.2mm |
3.0mm |
2.0mm |
38 Kg/m³ |
0.4mm |
0.4mm |
16 Nos |
CRCA Powder Coated |
The Pressurised Tanks are provided with the required safety valves & Pressure hoses.
